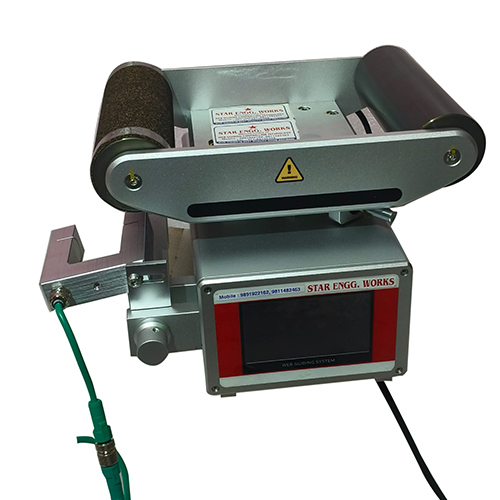

Offset Pivot Web Guide System

Name: Offset Pivot Web Guide System
Brand: STAR ENGINEERING WORKS
Price: 30000 INR
Availability: InStock

Price 30000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Offset Pivot Web Guide System Specification

Noise Level
Below 60 dB

Drive Type
Integrated Motorized Drive

Shape
Rectangular Unit

Size
Standard/Custom sizes from 100 mm to 2500 mm

Lubricating System
Self-Lubricated Bearings

Features
Automatic Web Alignment, Control Panel, Low Maintenance, Fast Response

Motor Power
Stepper or Servo Motor, 50W - 150W

Diameter
Roll Stand Diameter up to 1200 mm

Capacity
Up to 400 m/min web speed

Usage & Applications
Roll-to-Roll Printing, Lamination, Slitting, Coating and Converting Industries

Surface Finish
Smooth/Glossy

Product Type
Machine Accessories

Technology
Electro-Mechanical Web Guiding

Power Source
Electric/Automation Control

Power
240-+ Watt (w)

Voltage
110-240 Volt (v)

Surface Treatment
Powder Coated / Anodized

Dimension (L*W*H)
Customize Centimeter (cm)

Weight
45 Kg - 120 Kg

Color
All color available

Cable Entry
Sealed Glands for Dust & Moisture Protection

Finish Type
Corrosion Resistant

Input/Output Options
User Configurable, Compatible with PLC and Machine Signal Interfaces

Emergency Stop
Yes, Provided on Control Panel

Web Material Supported
Plastic Film, Paper, Nonwovens, Foil, Fabric

Sensor Type
Ultrasonic, Infrared, or Edge Sensors

Mounting
Side Frame or Floor Mount

Response Time
Instant (Real-Time Correction)

Installation
Plug & Play Assembly

Temperature Range
0C to 55C Operating

Adjustment Range
75 mm to 300 mm (as per model)

Control System
Microprocessor Based Digital Controller

Display
Digital LED/LCD Indication Panel

Offset Pivot Web Guide System Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units, , Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
customize packing

Main Domestic Market
All India

About Offset Pivot Web Guide System

Due to our customer-centric approach, we have successfully been involved in providing a broad range of Offset Pivot Web Guide Controller. The provided controller is made by our ingenious professionals using premium quality components with the help of latest machines. This controller is mainly used in filtration system, pump control, drug and food processing industry for detecting accurate level of fluid. In addition to this, the provided Offset Pivot Web Guide Controller can be purchased from us in various specifications at competitive prices.

Payment Terms :

    Cheque
    Rtgs
    Bank transfer
    Online

Technical Specifications

Automatic Grade	Automatic, Semi-Automatic
Brand	BST,SEW
Condition	New
Stroke	150mm
Weight	500
Material	Aluminium Copper Metal

Advanced Sensor Technology for Precise Web Guiding

Choose from Ultrasonic, Infrared, or Edge sensors to match your application needs. Each sensor accurately detects material edges or paths, enabling the digital controller to provide instant, real-time corrections. This ensures web materials remain perfectly aligned, preventing costly material wastage and production errors.

User-Friendly Digital Control Panel

The microprocessor-based digital controller empowers operators with a simple interface, featuring a bright LED or LCD display for clear visibility. User-configurable input and output options suit different PLC and machine signal requirements, making the system versatile across a wide range of industrial processes.

Robust Construction and Flexible Mounting

Constructed with corrosion-resistant materials, smooth or glossy finishes, and powder-coated or anodized surface treatments, the unit stands up to harsh industrial environments. The web guide can be side-frame or floor-mounted, accommodating standard or customized sizes for easy integration and reliable operation.

FAQ's of Offset Pivot Web Guide System:

Q: How does the Offset Pivot Web Guide System achieve real-time web alignment?

A: The system uses advanced Ultrasonic, Infrared, or Edge sensors to continuously monitor the position of the material. The microprocessor-based digital controller processes sensor data instantly, adjusting the web via an integrated stepper or servo motor to maintain precise alignment even at high speeds up to 400 m/min.

Q: What materials and industries is this system compatible with?

A: It supports a diverse array of web materials, including plastic film, paper, nonwovens, foil, and fabric. The web guide is widely used in roll-to-roll printing, laminating, slitting, coating, and converting industries, making it versatile for various production lines.

Q: When should I choose Ultrasonic, Infrared, or Edge sensors?

A: Ultrasonic sensors are ideal for transparent or translucent materials, Infrared for opaque or patterned webs, and Edge sensors for sharp contrast applications. The choice depends on your web material and application specifics, ensuring accurate detection and guiding performance.

Q: Where can the Offset Pivot Web Guide System be installed?

A: It is engineered for flexible mounting and can be installed on the side frame or floor of your converting line. Custom dimensions and mounting options accommodate diverse machine layouts and operating environments.

Q: What is the installation process and how long does it take?

A: The system features a plug & play assembly designed for straightforward installation. With sealed cable entries and modular design, most users can have it operational quickly, minimizing downtime during integration or upgrades.

Q: What are the key operational benefits of using this system?

A: Key benefits include automatic web alignment, instant real-time correction, compatibility with PLC and machine interfaces, low noise operation (below 60 dB), minimal maintenance thanks to self-lubricating bearings, and a high-speed capacity of up to 400 m/min. These features enhance production quality and reduce waste.
