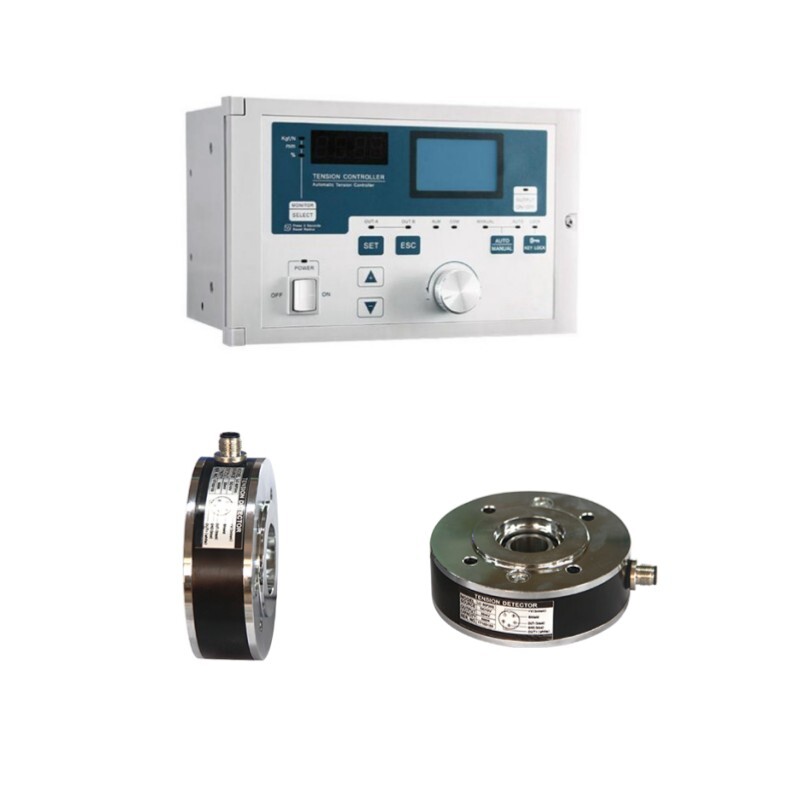

Auto Tension Controller with Load Cell

Get a Price/Quote

MOQ : 10 Units

Auto Tension Controller with Load Cell Specification

Protection Level
Overload & Short Circuit Protection

Phase
Single Phase

Usage & Applications
Industrial Automation, Printing, Packaging, Textile Processing

Installation Type
Panel Mounted / Wall Mounted

Sensor Type
Strain Gauge Load Cell

Frequency
50/60Hz

Current
0.5A to 2A

Connectivity Type
Terminal Block

Switch Type
Push Button & Rotary Switch

Display
Digital LED/LCD Display

Measuring Range
0-500N (customizable)

Output
0-10V / 4-20mA Analog Output, Relay Output

Features
Auto calibration, Fault alarm, Easy operation

Mounting Type
Panel / Wall Mount

IP Rating
IP20

Product Type
Auto Tension Controller with Load Cell

Operating Temperature
0C to 50C

Working Temperature
-10C to 60C

Input
AC 220V, 50/60Hz

Application
Tension Control in Winding, Unwinding, and Rewinding Machines

Supply Voltage
220V AC 10%

Accuracy
0.5% F.S.

Dimension (L*W*H)
210mm x 110mm x 60mm

Weight
2.5 kg (approx.)

Response Time
<100 ms

Controller Type
Microprocessor-based

Alarm Output
Relay (NO/NC)

Enclosure Material
Powder Coated Metal

Load Cell Material
Stainless Steel

Compliance
RoHS Compliant

Signal Isolation
Optical Isolation Available

Power Consumption
<20W

Sampling Rate
10 samples/sec

Ambient Humidity
20%RH ~ 85%RH

Control Method
Closed Loop Feedback

Tension Setting Range
Selectable via panel

Storage Temperature
-20C to 70C

Auto Tension Controller with Load Cell Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Auto Tension Controller with Load Cell

Find triumphant precision and glorious control with our Auto Tension Controller with Load Cell. Engineered for unwavering reliability, this cost-effective solution features closed-loop feedback, a robust stainless steel load cell, and a grand sampling rate of 10 samples/sec. Take advantage of stellar accuracy at 0.5% F.S. and rapid response time under 100 ms-ideal for winding, unwinding, and rewinding operations. Enjoy overload and short circuit protection, auto calibration, and versatile installation options. RoHS-compliant and India's favored choice for industrial automation, printing, packaging, and textile processing, this victorious system promises durability and control on a grand scale.

Versatile Control with Premium Material and Use Options

This Auto Tension Controller with Load Cell is designed for industrial automation in sectors like printing, packaging, and textile processing. Crafted with a stainless steel load cell and enclosed in powder coated metal, it ensures durability and reliability in both panel and wall-mount installations. Its specific use targets tension control in winding, unwinding, and rewinding machines, while general use spans diverse manufacturing processes, granting operators glorious, consistent performance and precise tension management.

Sample Policy, Dispatching & Freight Information

We dispatch sample orders swiftly to support evaluation and decision-making. Our Auto Tension Controller with Load Cell is meticulously packaged in secure export-standard cartons to ensure safe transport. Goods are dispatched from the main FOB port in India, with timely freight arrangements catering to both domestic and international buyers. Detailed sample policies are available upon request, enabling you to experience the controller's grand capabilities before committing to large-scale procurement.

FAQ's of Auto Tension Controller with Load Cell:

Q: How does the closed-loop feedback system enhance tension control accuracy?

A: The closed-loop feedback system continually monitors and adjusts the tension using real-time data from the strain gauge load cell. This ensures precise and stable tension control, even during rapid operation, resulting in more reliable and consistent production quality.

Q: What materials are used in the Auto Tension Controller's construction?

A: The controller features a stainless steel load cell for superior durability and a powder-coated metal enclosure, offering robust protection for industrial environments.

Q: Where can the Auto Tension Controller with Load Cell be installed?

A: It is versatile and supports both panel-mounted and wall-mounted installation, allowing seamless integration into various industrial automation setups.

Q: What specific industries benefit from using this controller?

A: Industries such as printing, packaging, textile processing, and general industrial automation benefit from its accuracy, rapid response, and consistent performance in tension management.

Q: When should overload and short circuit protection features be utilized?

A: These protection features activate automatically during abnormal load or electrical conditions, safeguarding the equipment and maintaining safe, uninterrupted operation.

Q: What is the process for ordering and receiving samples?

A: A sample policy is provided upon request. Once approved, samples are dispatched quickly, well-packaged, and transported via your preferred freight option from the main FOB port in India.
